CQFN管壳
| 图纸编号 |
|
引出端数 |

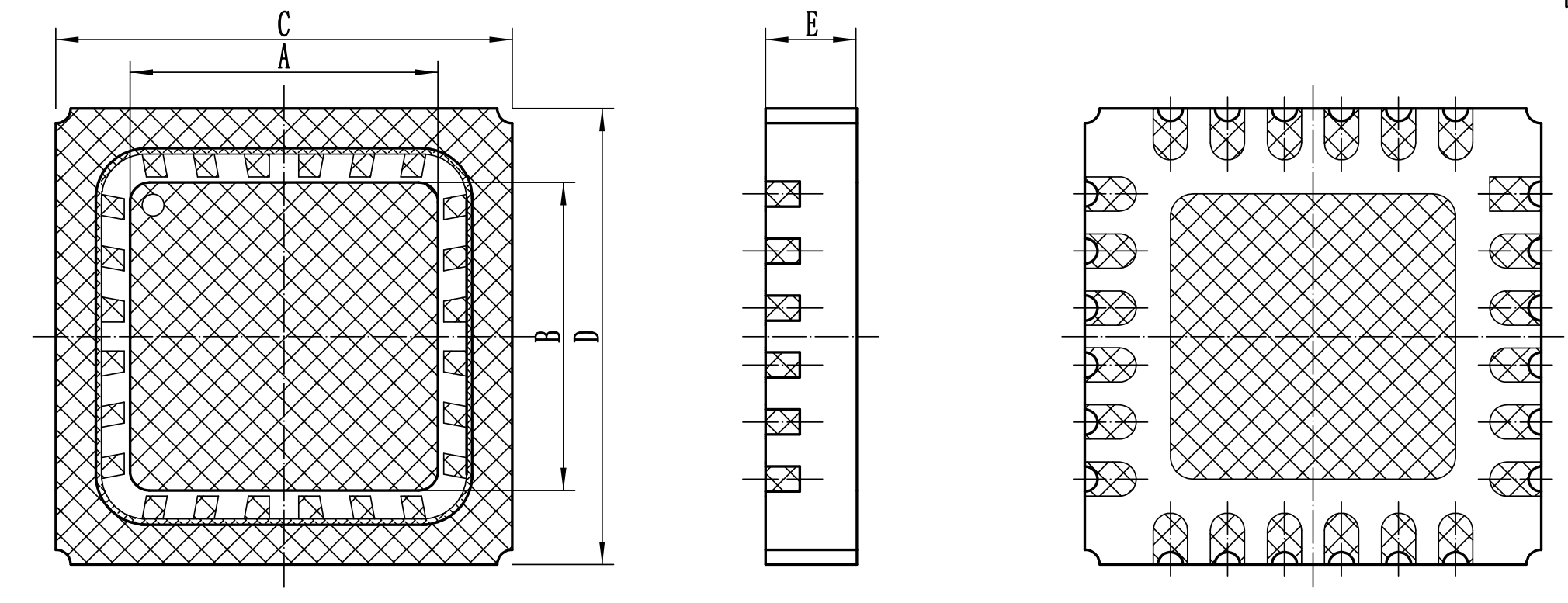

芯腔尺寸 A x B |
芯腔高度 |
外形尺寸 C x D |
外形高度 E |
引出端节距 |
陶瓷种类 |
是否有热沉 |
是否平行封焊 |
最高工作频率 [Hz] |
规格书 |
| FPCN0303-16 |
|
16 |
1.48 SQ |
0.30 |
3.00 SQ |
0.50 |
0.50 |
92% BLACK |
N |
N |
up to 14G |
查看
|
| FPCN0303-16c |
|
16 |
1.60 SQ |
0.40 |
3.00 SQ |
0.70 |
0.50 |
92% BLACK |
N |
N |
up to 19G |
查看
|
| FPCN0404-16c |
|
16 |
2.20 SQ |
0.50 |
4.00 SQ |
0.80 |
0.65 |
92% BLACK |
N |
N |
up to 14G |
查看
|
| FPCN0404-24c |
|
24 |
2.70 SQ |
0.50 |
4.00 SQ |
0.80 |
0.50 |
92% BLACK |
N |
N |
up to 12G |
查看
|
| FPCN0404-24f |
|
24 |
2.60 SQ |
0.40 |
4.00 SQ |
0.70 |
0.50 |
92% BLACK |
N |
N |
up to 16G |
查看
|
| FPCN0404-24d |
|
24 |
2.70 SQ |
0.80 |
4.00 SQ |
1.10 |
0.50 |
92% BLACK |
N |
Y |
up to 12G |
查看
|
| FPCN0505-20a |
|
20 |
2.05x2.35 |
1.30 |
5.00 SQ |
1.80 |
0.50 |
92% BLACK |
N |
Y |
up to 8G |
查看
|
| FPCN0505-20c |
|
20 |
2.05x2.35 |
1.18 |
5.00 SQ |
1.80 |
0.50 |
92% BLACK |
Y |
Y |
up to 8G |
查看
|
| FPCN0505-32 |
|
32 |
3.00 SQ |
0.85 |
5.00 SQ |
1.25 |
0.50 |
92% BLACK |
N |
Y |
up to 8G |
查看
|
| FPCN0606-40 |
|
40 |
4.50 SQ |
0.70 |
6.00 SQ |
1.00 |
0.50 |
92% BLACK |
N |
N |
up to 16G |
查看
|
| FPCN0606-40a |
|
40 |
4.50 SQ |
0.70 |
6.00 SQ |
1.00 |
0.50 |
92% BLACK |
N |
N |
up to 8G |
查看
|
| FPCN0606-40b |
|
40 |
4.50 SQ |
1.00 |
6.00 SQ |
1.30 |
0.50 |
92% BLACK |
N |
Y |
up to 8G |
查看
|
| FPCN0707-48b |
|
48 |
5.00 SQ |
1.00 |
7.00 SQ |
1.25 |
0.50 |
92% BLACK |
N |
Y |
up to 8G |
查看
|
| FPCN0808-20 |
|
20 |
4.60 SQ |
1.80 |
9.00 SQ |
2.30 |
1.27 |
92% BLACK |
N |
Y |
up to 5G |
查看
|
| FPCN0909-20b |
|
20 |
6.30 SQ |
1.30 |
9.00 SQ |
1.60 |
1.50 |
92% BLACK |
N |
Y |
up to 8G |
查看
|
| FPCN0909-20c |
|
20 |
6.30 SQ |
1.10 |
9.00 SQ |
1.70 |
1.50 |
92% BLACK |
N |
Y |
up to 12G |
查看
|
| FPCN0909-32a |
|
32 |
6.00 SQ |
1.30 |
9.00 SQ |
1.80 |
0.90 |
92% BLACK |
N |
N |
up to 5G |
查看
|
| FPCN0909-32c |
|
32 |
6.00 SQ |
1.60 |
9.00 SQ |
2.10 |
0.90 |
92% BLACK |
N |
Y |
up to 5G |
查看
|
| FPCN1010-64 |
|
64 |
5.10 SQ |
0.90 |
10.00 SQ |
1.50 |
0.50 |
92% BLACK |
Y |
Y |
up to 4G |
查看
|
| FPCN1111-40a |
|
40 |
8.00 SQ |
1.25 |
11.00 SQ |
1.80 |
0.90 |
92% BLACK |
N |
N |
up to 3G |
查看
|
| FPCN1111-40b |
|
40 |
8.00 SQ |
4.75 |
11.00 SQ |
5.30 |
0.90 |
92% BLACK |
N |
Y |
up to 3G |
查看
|
| FPCN1111-40c |
|
40 |
8.00 SQ |
2.00 |
11.00 SQ |
2.55 |
0.90 |
92% BLACK |
N |
Y |
up to 3G |
查看
|
| FPCN1313-48a |
|
48 |
10.00 SQ |
1.25 |
13.00 SQ |
1.80 |
0.90 |
92% BLACK |
N |
N |
up to 3G |
查看
|
| FPCN1313-48b |
|
48 |
10.00 SQ |
1.55 |
13.00 SQ |
2.10 |
0.90 |
92% BLACK |
N |
Y |
up to 3G |
查看
|
| FPCN1515-48 |
|
48 |
12.00 SQ |
1.75 |
16.30 SQ |
2.55 |
1.10 |
92% BLACK |
N |
Y |
up to 2G |
查看
|
| FPCN1616-48 |
|
48 |
12.00 SQ |
2.75 |
16.30 SQ |
3.30 |
1.20 |
92% BLACK |
N |
Y |
up to 2G |
查看
|
| SPNC2020-32 |
|
32 |
15.00 SQ |
4.96 |
20.60 SQ |
5.70 |
1.27 |
92% BLACK |
N |
Y |
up to 1G |
查看
|
| FPCN2020-68 |
|
68 |
14.73 SQ |
1.64 |
24.13 SQ |
2.66 |
1.27 |
92% BLACK |
N |
Y |
up to 1G |
查看
|
| FPCN2424-68 |
|
68 |
14.73 SQ |
1.14 |
24.13 SQ |
2.16 |
1.27 |
92% BLACK |
N |
N |
up to 1G |
查看
|
