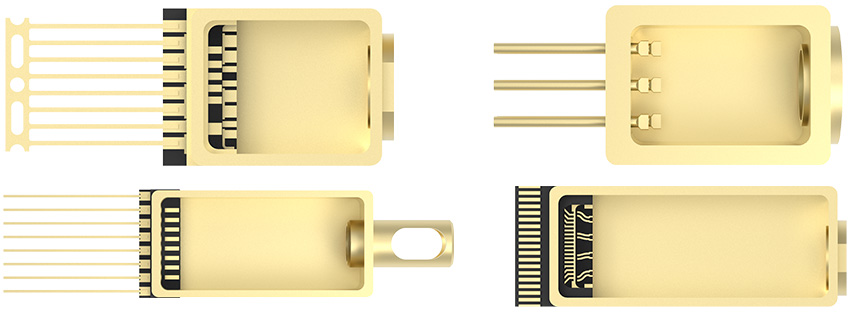

光模块管壳
| 图纸编号 |
|
封装结构 |
速率 |
射频端口 |
引出端数 |
引出端截距 |
外形尺寸 |
外形高度 |
芯腔尺寸 |
底板材质 |
底板尺寸 |
规格书 |
| FOC0605-08 |
|
TOSA BOX |
25Gbps |
PADx1 |
8 |
0.8 |
5.77x5.4 |
5.35 |
3.8x3.4 |
可伐合金 |
9.2x6.9 |
|
| FOC0805-10 |
|
TOSA BOX |
25Gbps |
LEADx1 |
10 |
0.76 |
7.6x5.4 |
5.35 |
5.6x4.4 |
钨铜 |
7.6x5.4 |
|
| FOC0806-10 |
|
TOSA BOX |
25Gbps |
PADx2 |
10 |
0.5 |
7.8x5.5 |
5.3 |
5.5x4.45 |
钨铜 |
7.8x5.5 |
|
| FOC0807-14a |
|
TOSA BOX |
10Gbps |
LEADx4 |
14 |
0.7 |
8.0x6.6 |
5.3 |
5.6x5.5 |
可伐合金 |
8.0x6.6 |
|
| FOC1307-08 |
|
TOSA BOX |
/ |
/ |
8 |
0.9 |
13.0x7.0 |
6.1 |
10.95x6.0 |
钨铜 |
13.0x7.0 |
|
| FOC1406-00 |
|
TOSA BOX |
100Gbps |
PADx4 |
25 |
0.5 |
14.15x6.4 |
5.1 |
9.7x3.7 |
氧化铝陶瓷 |
14.15x6.4 |
|
| FOC1507-31 |
|
TOSA BOX |
|
|
31 |
0.47 |
15.0x6.7 |
5.4 |
12.62x5.7 |
钨铜 |
15.0x6.7 |
|
| FOC1607-27 |
|
TOSA BOX |
100Gbps |
PADx4 |
27 |
0.37 |
16.0x6.7 |
5.7 |
12.95x5.7 |
钨铜 |
16.0x6.7 |
|
| FOC1608-08 |
|
TOSA BOX |
/ |
/ |
8 |
1.0 |
16.0x7.7 |
6.1 |
12.3x6.7 |
钨铜 |
16.0x7.7 |
|
| FOC2411-00 |
|
TOSA BOX |
/ |
/ |
10 |
0.47 |
23.5x11.0 |
7.85 |
20.3x9.4 |
可伐合金 |
23.5x11.0 |
|
